DIN Ck45/1.1191 Engineering steel
Port: Hu nan
Ck45 engineering steel, Ck45 alloy tool steel, Ck45 alloy steel, Ck45 alloy structural steel
Alloy Structural Steel, Alloy Tool Steel, Carbon Structural Steel, Carbon Tool Steel, Bearing Steel, Spring Steel ,Stainless Steel, Refractory Steel, Roll Steel, Pinion Steel. Additionally, the company also has the capacity to forge round steel, steel flat, square steel, module, shaft and roller
1: Ck45 steel introduction
Ck45 is German grade carbon steel, equivalent to domestic 45 steel, is a commonly used steel, also known as 45 # steel. Usually in the form of plates, bars, tubes, etc. It has good weldability, good machinability, high strength and impact properties.
2: Ck45 steel equivalent
| Country | China | Japan | Germany | USA |
| Standard | GB/T | JIS |
DIN (W-Nr.) DIN 17200 |
AISI/ASTM |
| Grade |
|
|
Ck45 |
|
3: Ck45 steel chemical composition
| Grade | C | Si | Mn | P | S |
| Ck45 | 0.42-0.50 | 0.40 | 0.50-0.80 | 0.035 | 0.03 |
4: Ck45 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: Ck45 steel overviews

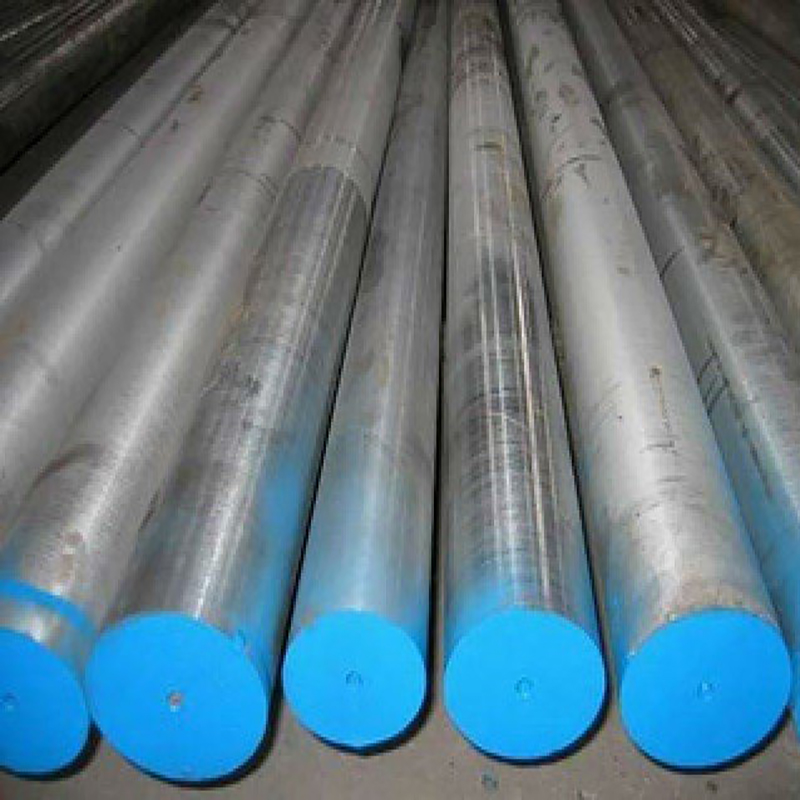

| Size | Round | Dia 6-1200mm |
| Plate/Flat/Block |
Thickness 6mm-500mm |
|
|
Width 20mm-1000mm |
||
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Delivery time | 30-45 days | |
| Application | Ck45 is used for axle, bolt, connecting rod, hydraulic tong, plunger, pin, roller, stud, shaft, main shaft, main shaft, sleeve, light gear, etc. | |
6: Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed/QT, rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
For hot forged block, usually the delivery condition is hot forged, annealed/QT, milled surface/Black surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
For cold drawn bar, usually the delivery condition is cold drawn, annealed/QT, peeled/black surface
