JIS SKS5 | DIN 75Cr1/1.2003 Hot Work Tool Steel
Port: Hu nan
75Cr1 hot work tool steel, 75Cr1 tool steel, 75Cr1 alloy tool steel, 75Cr1 alloy steel, 1.2003 hot work tool steel, sks5 hot work tool steel
Alloy Structural Steel, Alloy Tool Steel, Carbon Structural Steel, Carbon Tool Steel, Bearing Steel, Spring Steel ,Stainless Steel, Refractory Steel, Roll Steel, Pinion Steel. Additionally, the company also has the capacity to forge round steel, steel flat, square steel, module, shaft and roller
1: 75Cr1 steel introduction
75Cr1 is the steel plate grade for die, and it is also the foreign standard cold working tool steel grade. It has high hardenability, strength and toughness, high surface quality, quenching hardness above 63 HRC. In addition to good purity, microstructure uniformity and surface quality, 75Cr1 has higher strength and toughness in different degrees.
2: 75Cr1 Steel equivalent
| Country | China | Japan | Germany | USA | UK |
| Standard | GB | JIS | DIN 17350 | ASTM | BS |
| Grade |
|
SKS5 | 75Cr1 |
|
|
3: 75Cr1 steel chemical composition
| Grade | C | Mn | Cr | Si | |||
|
75Cr1 |
0.70-0.80 | 0.60-0.80 | 0.30-0.40 | 0.25-0.50 | |||
| SKS5 | 0.75-0.85 | 0.50 | 0.20-0.50 | 0.35 | |||
4: 75Cr1 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: 75Cr1 steel overviews

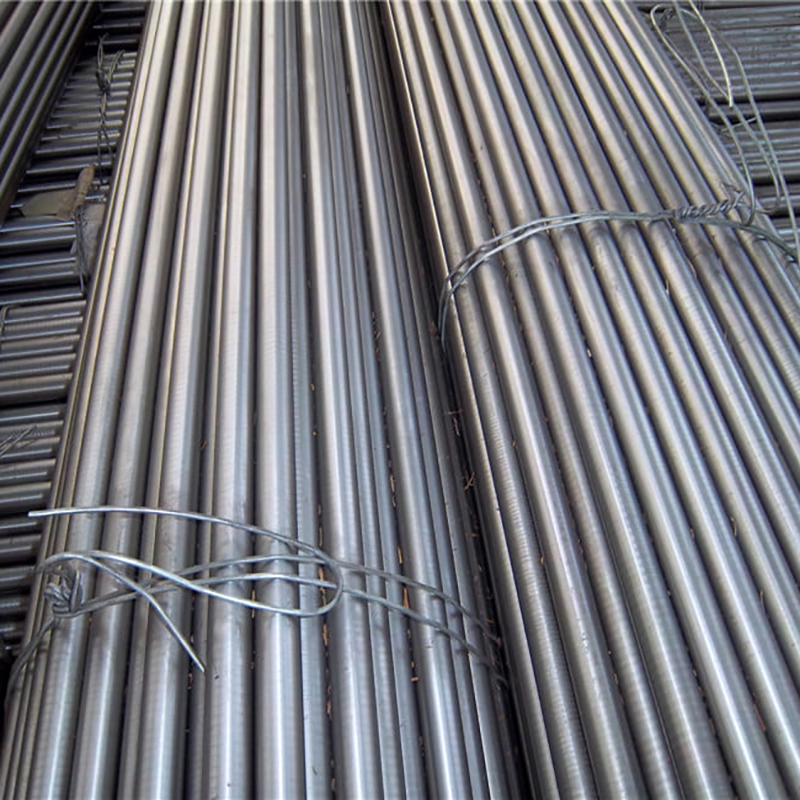

| Size | Round | Dia 6-1200mm |
| Plate/Flat/Block |
Thickness 6mm-500mm |
|
|
Width 20mm-1000mm |
||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) | |
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Packing | Standard packages or as per customers request. | |
| Delivery time | 30-45 days | |
| Application | 75Cr1 is mainly used in tools, such as saw blades, diamond cutting pieces and other tools that need quenching and high hardness. Also used for small tools, such as: mandrel, punch, stamping tools, razor, etc. | |
6: Delivery condition
For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
