Ground Blank Plate

Port: Hu nan

Supply Ability: 100000 Set/Sets per Month

Min.Order Quantity: 1 Set/Sets

E-mail:export@qilucs.com

  • Quick Details

    Standard: AISI, ASTM, BS, DIN, GB, JIS
    Grade: Ground Blank Plate
    Thickness: 0.12MM-1.2MM
    Place of Origin: Liaoning, China (Mainland)
    Brand Name: New origin steel
    Model Number: LKM,HASCO,DME
    Type: Steel Coil
    Technique: Cold Rolled
    Surface Treatment: Coated
    Application: Ground Blank Plate
    Special Use: Ground Blank Plate
    Width: 600mm-1250mm
    Length: 1000-6000mm
    Shaping Mode: Plastic Injection Mould
    Product Material: Steel
    Product: Ground Blank Plate


    Packaging & Delivery

    Packaging Details: standard export packing or according to you request

    Delivery Detail: Shipped in 7 days after payment

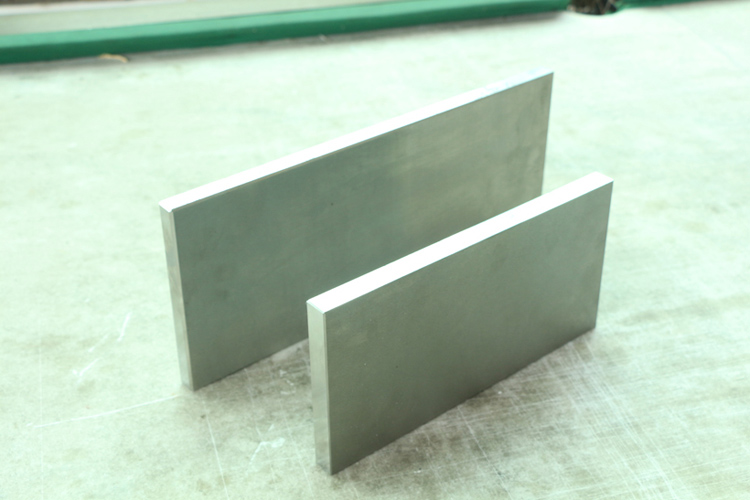

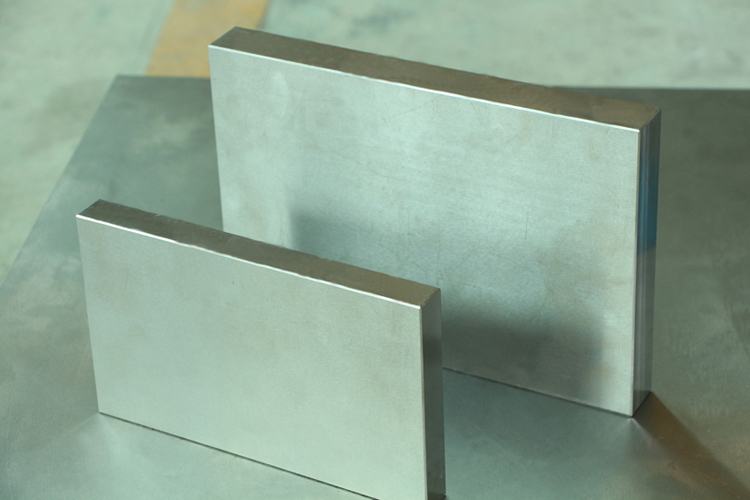

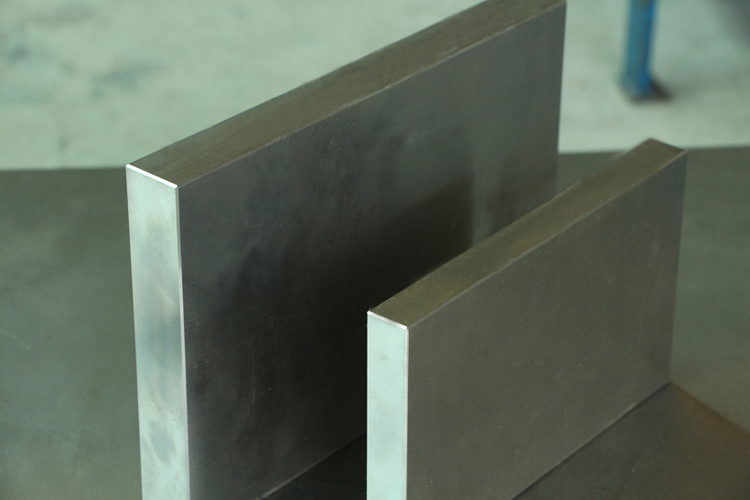

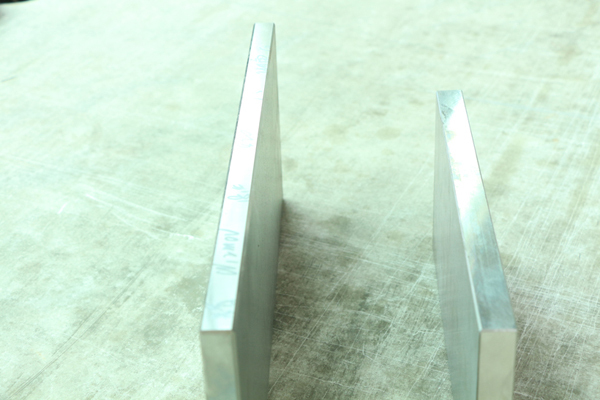

    Ground Blank Plate
    Features :
    Machined on all sides. Could be combined by the modular principle.
    For injection moulding, compression moulding and pressure diecasting moulds.
    Graded tolerance according to plate size.  More cost-effective range.

    Typical grades:


    Carbon Steel 1020,1045, 1050
    Tool steel H13,D3,D2,1.2311,1.2738
    Stainless steel 201,304,420 Series


    Tolerance:

    Tolerance  Rough Machined Finishing
    Size Range ≤296 >296 ≤296 >296
    Length (Max=3000mm) +0.4~+0.2 +0.6~+0.4 ±0.02
    Width (Max=2000mm)
    Thickness(Max=1000mm) ±0.02
    Parallelism 0.01/100
    Perpendicular 0.02/100
    Roughness Ra0.8
    Above for general tolerances, Please provide details if any special.
