JIS SKT6 | DIN 45NiCrMo16 Hot Work Tool Steel
Port: Hu nan
SKT6 hot work tool steel, SKT6 tool steel, SKT6 alloy tool steel, SKT6 alloy steel
Alloy Structural Steel, Alloy Tool Steel, Carbon Structural Steel, Carbon Tool Steel, Bearing Steel, Spring Steel ,Stainless Steel, Refractory Steel, Roll Steel, Pinion Steel. Additionally, the company also has the capacity to forge round steel, steel flat, square steel, module, shaft and roller
1: JIS SKT6 steel introduction
SKT6 has the advantages of good abrasion resistance, high toughness, high hardness, high compressive strength and dimensional stability, as well as good corrosion resistance. Polishing and cutting pin performance is also very good, it is easy to achieve the mirror effect.
2: JIS SKT6 Steel equivalent
Country
China
Japan
Germany
USA
UK
Standard
GB/T 1299
JIS G4404
DIN EN ISO4957
ASTM A681
BS 4659
Grade
SKT6
45NiCrMo16
3: JIS SKT6 steel chemical composition
Grade
C
Mn
P
S
Si
Cr
V
Ni
Mo
45NiCrMo16
0.40
0.50
0.15
0.45
0.03
0.03
0.10
0.40
0.45
0.65
/
/
1.05
1.25
0.50
0.60
SKT6
0.40
0.50
0.20
0.50
0.03
0.02
0.10
0.40
1.20
1.50
/
/
3.80
4.30
0.15
0.35
4: JIS SKT6 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: JIS SKT6 steel overviews

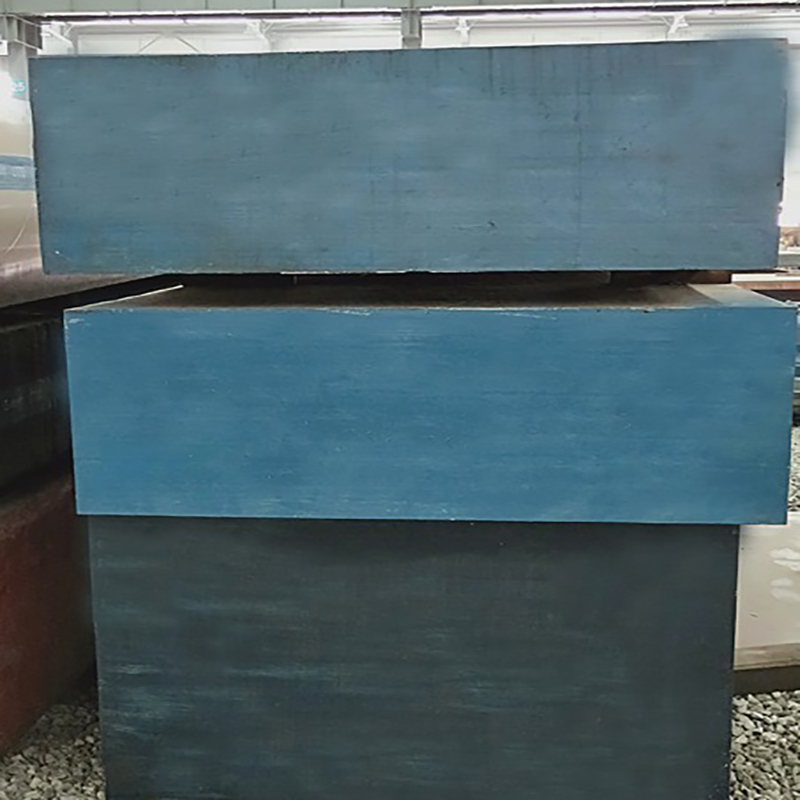

| Size | Round | Dia 6-1200mm |
| Plate/Flat/Block |
Thickness 6mm-500mm |
|
|
Width 20mm-1000mm |
||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) | |
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Packing | Standard packages or as per customers request. | |
| Delivery time | 30-45 days | |
| Application | SKT6 is mainly used in heavy high toughness stamping die, high stress injection mold, heavy cold working tools, cutting tools, as well as high hardness and high toughness plastic mold. | |
6. Heat Treatment
Forging
Heat slowly and evenly to 1050 ℃. Reheat the steel if necessary to avoid working at temperatures below 850 °C. After forging the steel, cool slowly in a furnace or in an insulating material.
Annealing
The components are homogeneously heated 630 - 650 ℃ to soak and then slowly cooled in an oven to about 600 °C and cooled in air.
Hardening
Heat the tool slowly and evenly to 650 - 700 °C and soak thoroughly continue to the hardening temperature of 840 - 870 °C and heat the assembly through. Quench the assembly or cool it in air.
7: Delivery condition
For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
