Quick Details
1: BS EN39 steel introduction

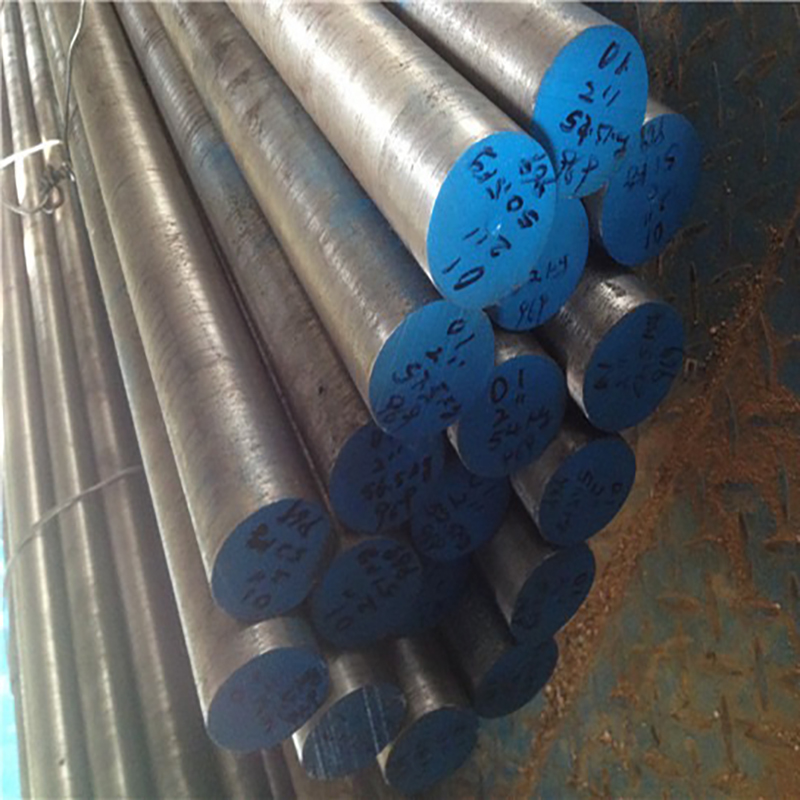

EN39 is a 4.5% nickel, chromium, molybdenum grade, suitable for case hardening to give a case resistant surface with a high core strength up to 1310 N/mm2. This grade is commonly supplied as round bar. EN39A and EN39B are common standards for this grade.
2: BS EN39 steel equivalent
|
Country
|
China
|
Japan
|
Germany
|
USA
|
British
|
|
Standard
|
GB/T 3077
|
JIS G4105/JIS
|
DIN (W-Nr.)
EN 10250
|
AISI/ASTM
ASTM A29
|
BS 970
|
|
Grade
|
|
|
15NiCrMo16-5/1.6723
|
|
EN39/835M15
|
3: BS EN39 steel chemical composition
|
Grade
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Mo
|
Ni
|
|
15NiCrMo16-5/1.6723
|
0.12-0.18
|
0.50
|
0.50
|
0.03
|
0.025
|
1.00-1.40
|
0.15-0.45
|
4.00-4.50
|
|
EN39/835M15
|
0.12-0.18
|
0.15-0.40
|
0.25-0.50
|
0.025
|
0.025
|
1.00-1.40
|
0.15-0.30
|
3.90-4.30
|
4: BS EN39 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: BS EN39 steel overviews
|
Size
|
Round
|
Dia 6-1200mm
|
|
Plate/Flat/Block
|
Thickness
6mm-500mm
|
Width
20mm-1000mm
|
|
Heat treatment
|
Normalized ; Annealed ; Quenched ; Tempered
|
|
Surface condition
|
Black; Peeled; Polished; Machined; Grinded; Turned; Milled
|
|
Delivery condition
|
Forged; Hot rolled; Cold drawn
|
|
Test
|
Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
|
|
Payment terms
|
T/T;L/C;/Money gram/ Paypal
|
|
Trade terms
|
FOB; CIF; C&F; etc..
|
|
Delivery time
|
30-45 days
|
|
Application
|
EN39 is used for high duty gears, heavy duty worms, heavy roller bearings, breech mechanisms, small arms components, camshafts, clutch plates, valve rockers.
|
6. Heat Treatment
Hardening / ℃ : 800 - 820;
Sub-Critically annealed / ℃ : 277;
Normalized and Tempered / ℃ : 269
7: Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed/QT, rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
For hot forged block, usually the delivery condition is hot forged, annealed/QT, milled surface/Black surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
For cold drawn bar, usually the delivery condition is cold drawn, annealed/QT, peeled/black surface
