GB 3Cr17Mo | JIS SUS420J | DIN 1.2316 Plastic Mould Steel

Port: Hu nan

engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, stainless steel

Alloy Structural Steel, Alloy Tool Steel, Carbon Structural Steel, Carbon Tool Steel, Bearing Steel, Spring Steel ,Stainless Steel, Refractory Steel, Roll Steel, Pinion Steel. Additionally, the company also has the capacity to forge round steel, steel flat, square steel, module, shaft and roller

E-mail：export@qilucs.com

Product Detail
  • Quick Details

    1: DIN 1.2316 steel introduction
        1.2316 is a chrome-molybdenum steel with improved corrosion resistance properties, 1.2316 possesses good polishability, toughness, heat resistance and wear-resistant properties. It is often used for tools for processing chemically aggressive plastic materials (e.g. PVC).
        1.2316 is a martensitic stainless chromium steel with uniform hardness in all dimensions, it is easy to machine, high surface finish and polishability. 1.2316 is commonly used for plastic moulds, and offers a higher corrosion resistance than 1.2083. It can be used with for the manufacturing of chemically aggressive materials like PVC and plastics containing abrasive fillers.

        This grade is not suitable for nitriding and chrome plating because of the high chrome content.


    2: DIN 1.2316 Steel equivalent
    Country China Japan Germany USA UK
    Standard GB/T 1299 JIS G4404 DIN EN ISO4957 ASTM A681 BS 4659
    Grade 3Cr17Mo SUS420J 1.2316 / /

    3: DIN 1.2316 steel chemical composition
    Grade C Si Mn P S Cr Mo Ni
    SUS420J 0.26-0.40 ≤1.00 1.0 Max 0.04Max 0.03 Max 12.0~14.0 / 0.60 Max
    1.2316 0.33-0.45 ≤1.00 0-1.50 0.03Max 0.03 Max 15.50-17.50 0.80-1.30
         		1.00 Max

    4: DIN 1.2316 steel mechanical properties
        The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.

    5: DIN 1.2316 steel overviews

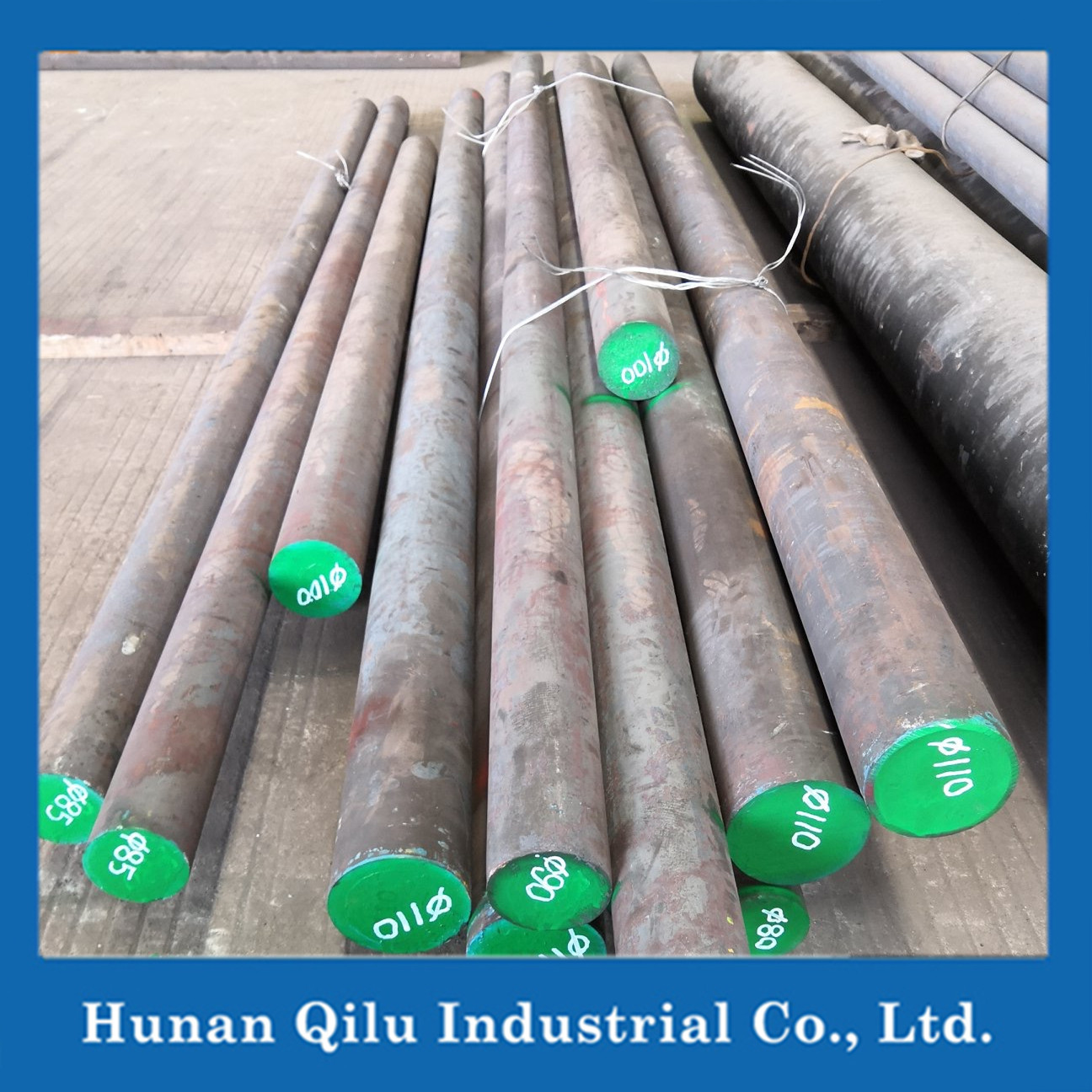

    Size Round Dia 6-1200mm
    Plate/Flat/Block Thickness
    6mm-500mm
    Width
    20mm-1000mm
    Process EAF+LF+VD+Forged+Heat treatment(optional)
    Heat treatment Normalized ; Annealed ; Quenched ; Tempered
    Surface condition Black; Peeled; Polished; Machined; Grinded; Turned; Milled
    Delivery condition Forged; Hot rolled; Cold drawn
    Test Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
    Payment terms T/T;L/C;/Money gram/ Paypal
    Trade terms FOB; CIF; C&F; etc..
    Delivery time 30-45 days
    Application  DIN 1.2316 is applicable for all kinds of silicon steel sheet and high-speed blanking die. Precise stamping die. Cold extruding forming die. Cavitations Molds, Standard Mould Base, Compression Mould for SMC, blowing mould, Pet preform mold, plastic piping & plumbing injection molds.Injection mould for plastics, die-casting moulds, moulding of corrosive material (PVC), extrusion tools.

    6:HEAT TREATMENT
        already pre-toughened; usually no heat treatment required
    Soft annealing:
        760 to 800 °C for about 4 to 5 hours; slow controlled cooling of 10 to 20 °C per hour to about 650 °C; further cooling in air, max. 230 HB
    Hardening:
       1030 to 1050 °C
       15 to 30 minutes keeping curing temperature
       quenching in water/oil
       obtainable hardness: 49 HRC
    Tempering:
       Slow heating to tempering temperature immediately after hardening. Minimum time in furnace: 1 hour per 20 mm part thickness


    7: Delivery condition
        For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
        For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
        For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
