JIS SNCM220 | DIN 1.6523/21NiCrMo2 | AISI 8620 | BS 805M20 Engineering Steel

Port: Hu nan

engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, stainless steel

Alloy Structural Steel, Alloy Tool Steel, Carbon Structural Steel, Carbon Tool Steel, Bearing Steel, Spring Steel ,Stainless Steel, Refractory Steel, Roll Steel, Pinion Steel. Additionally, the company also has the capacity to forge round steel, steel flat, square steel, module, shaft and roller


  • Quick Details

    1: 8620 steel introduction

        AISI 8620 Steel is a low alloy nickel, chromium, molybdenum case hardening steel, generally supplied in the as rolled condition with a maximum hardness HB 255max. SAE steel 8620 offers high external strength and good internal strength, making it highly wear resistant. AISI 8620 steel has a higher core strength than grades 8615 and 8617.SAE 8620 alloy steel is flexible during hardening treatments, thus enabling improvement of case/core properties. Pre hardened and tempered (uncarburized) 8620 can be further surface hardened by nitriding but will not respond satisfactorily to flame or induction hardening due to its low carbon content.

    2: 8620 Steel equivalent
    Country Japan Germany Britain USA
    Standard JIS G4103 DIN 1654 BS970 ASTM A29
    Grade SNCM220 21NiCrMo2/1.6523 805M20 8620
    3: 8620 steel chemical composition
    Grade C Si Mn P S Cr Mo Ni
    8620 0.18-0.23 0.15-0.35 0.7-0.9 0.035 0.04 0.4-0.6 0.15-0.25 0.4-0.7
    1.6523 0.17-0.23 0.4 0.65-0.95 0.035 0.035 0.4-0.7 0.15-0.25 0.4-0.7
    805M20 0.17-0.23 0.1-0.4 0.6-0.9 0.03 0.03 0.35-0.65 0.15-0.3 0.4-0.7
    SNCM220 0.17-0.23 0.15-0.35 0.6-0.9 0.03 0.03 0.4-0.65 0.15-0.25 0.4-0.7
    4: 8620 steel mechanical properties

        The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.

    5: 8620 steel overviews

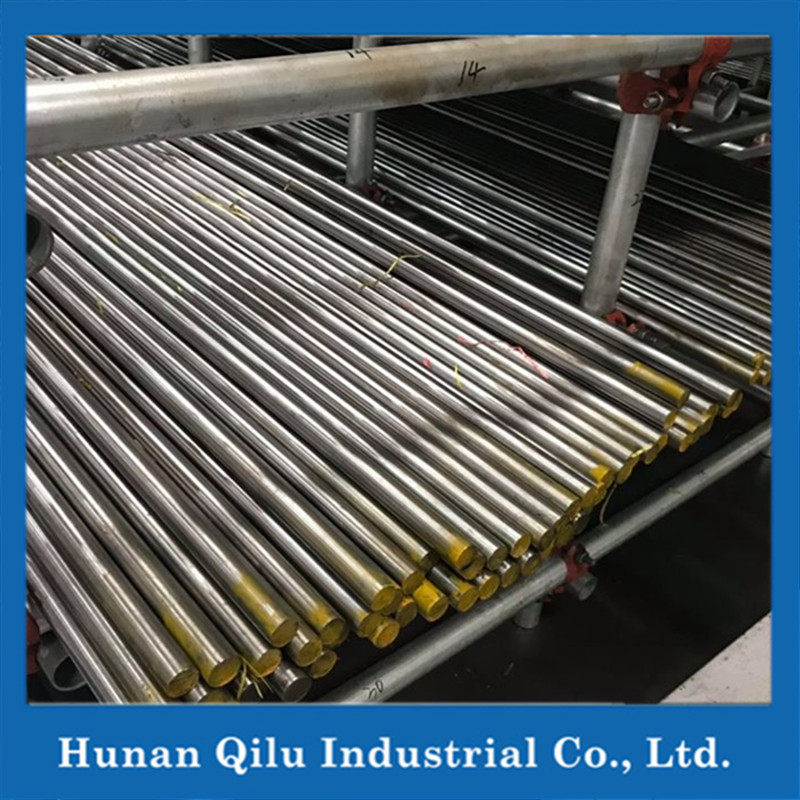

    Size Round Dia 6-1200mm
    Plate/Flat/Block Thickness
    Heat treatment Normalized ; Annealed ; Quenched ; Tempered
    Surface condition Black; Peeled; Polished; Machined; Grinded; Turned; Milled
    Delivery condition Forged; Hot rolled; Cold drawn
    Test Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
    Payment terms T/T;L/C;/Money gram/ Paypal
    Trade terms FOB; CIF; C&F; etc..
    Delivery time 30-45 days
    Application 8620 alloy steels are used for  Arbors, Bearings, Bushings, Cam Shafts, Differential Pinions, Guide Pins, King Pins, Pistons Pins, Gears, Splined Shafts, Ratchets, Sleeves and other applications where it is helpful to have a steel that can be readily machined and carburized to controlled case depths.

    6. ASTM 8620 Steel Heat Treatment
        AISI 8620 steel may be given a full anneal by heat to 820℃ – 850℃, and hold until temperature is uniform throughout the section and cool in furnace or air cooled.
        Tempering of heat treated and water quenched parts of 8620 steels (not carburized) is done at 400 F to 1300 F to improve case toughness with minimal effect on its hardness. This will also reduce the possibility of grinding cracks.
        The AISI steel 8620 will be austenitized at around 840°C – 870°C, and oil or water quenched depending upon section size and intricacy. Cool in Air or Oil required.
        1675oF (910oC) and air cool. This is another method of improving machinability in 8620 material; normalizing might also be used prior to case hardening.

    7: Delivery condition

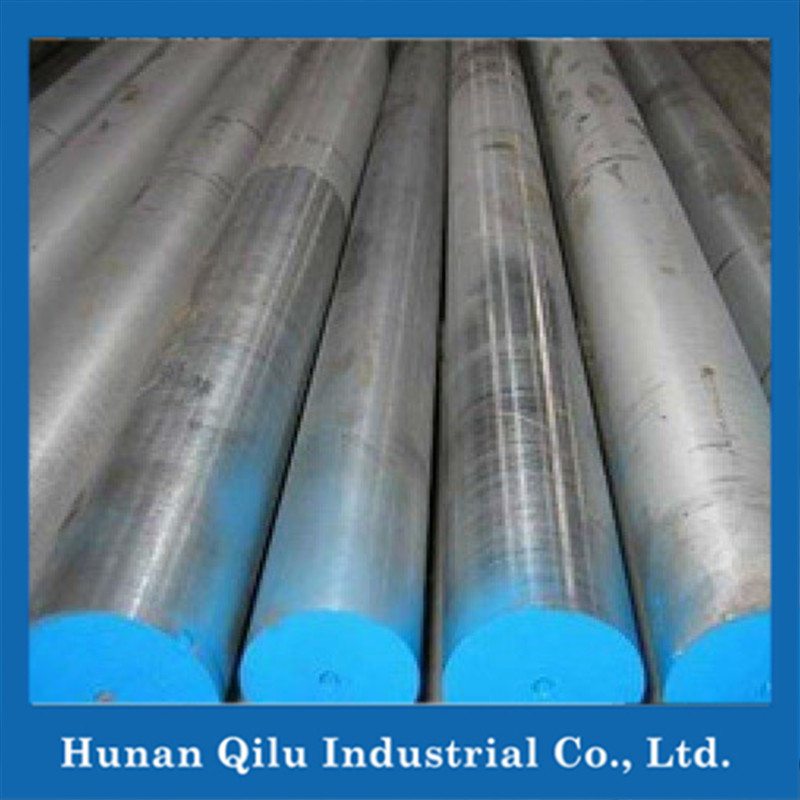

        For hot forged  bar, usually the delivery condition is hot forged, annealed/QT, rough turned/Black surface.

        For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
